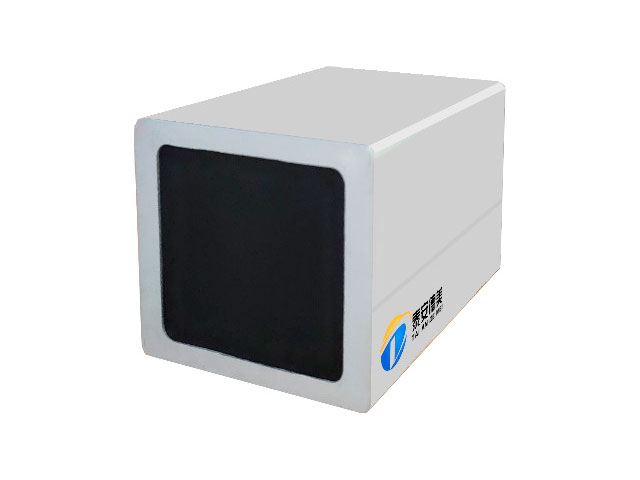

DY-HTX3 Embedded Blackbody Furnace(35℃~45℃)

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

1, More portable, more light.More precision.

2, the equipment can be built into the equipment, so as to facilitate the use of special industries.

3, temperature setting, simple operation.Rapid heating, temperature control.

[Technical indicators]

Temperature Range: 35℃~45℃ adjustable

Operating Temperature :(35℃, 37℃, 40℃) optional, automatic operation

Radiation Surface: 70mm×60mm

Temperature Resolution: 0.1℃

Temperature Stability: ± (01.-0.2) ℃

Temperature Uniformity: ±0.2℃

Emissivity: 0.97±0.02

Factory Emissivity Setting: 0.97

Power Supply: 220V AC 50Hz

Dimensions/weight: 135mmX90mmX90mm/≤1.0kg

Ambient temperature/humidity: 0℃~30℃ / ≤80%RH

Optional: optional RS485 communication interface

Completely meet the positioning temperature requirements, easy to carry, suitable for robot built-in black body, suitable for built-in brake temperature measurement. It can be used in car with 12V power supply.
